Applications:

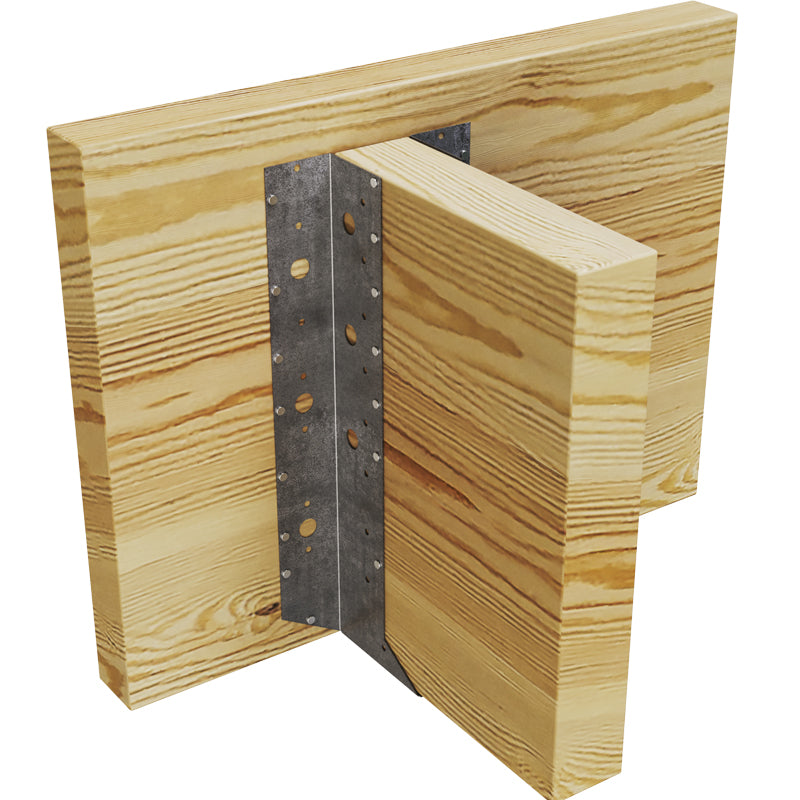

Heavy‑load joist-to-header connections for large‑span decking, commercial flooring, pergolas, roof trusses, and high wind / coastal areas.
Features:
- 1.2mm thick – heavy duty, stronger than standard 1.0mm.
- G300 galvanised steel, Z275 coating – high strength, corrosion resistant.

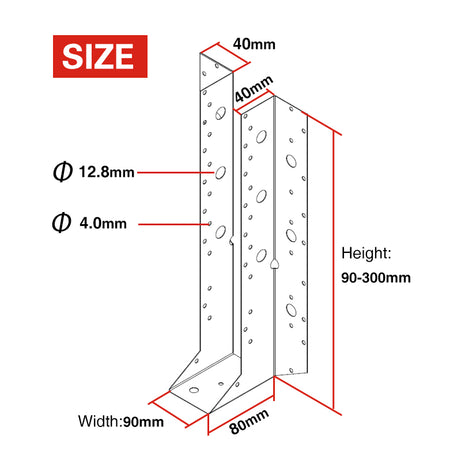

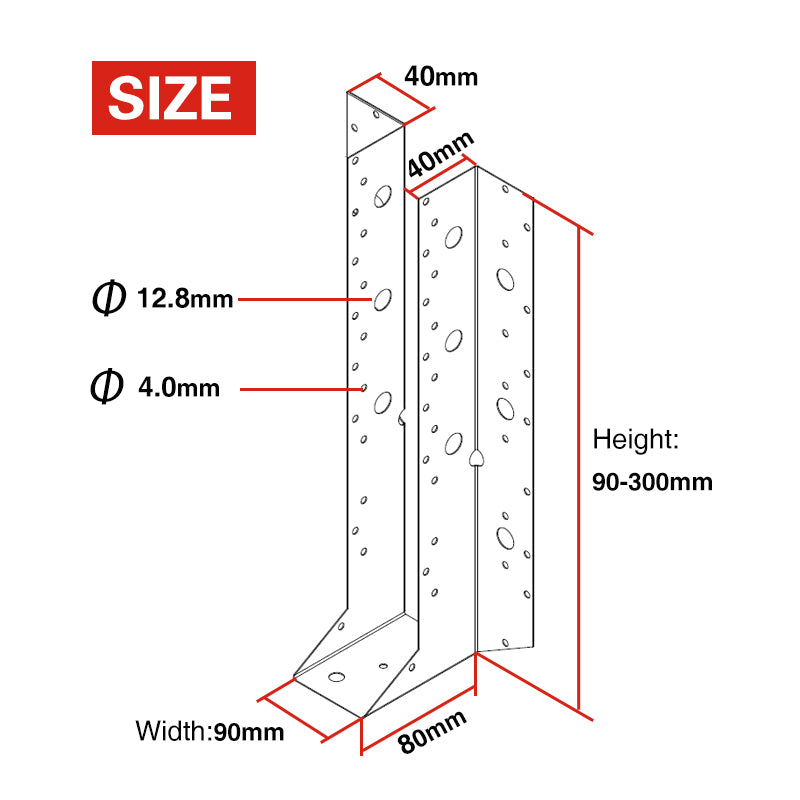

- 90mm fixed width – designed for 90mm wide joists.
- Pre‑punched nail holes (4.0mm) – for 3.75×40mm pins.
- 12.5mm bolt hole – optional M12 bolt for extreme loads.
- AS/NZS compliant.

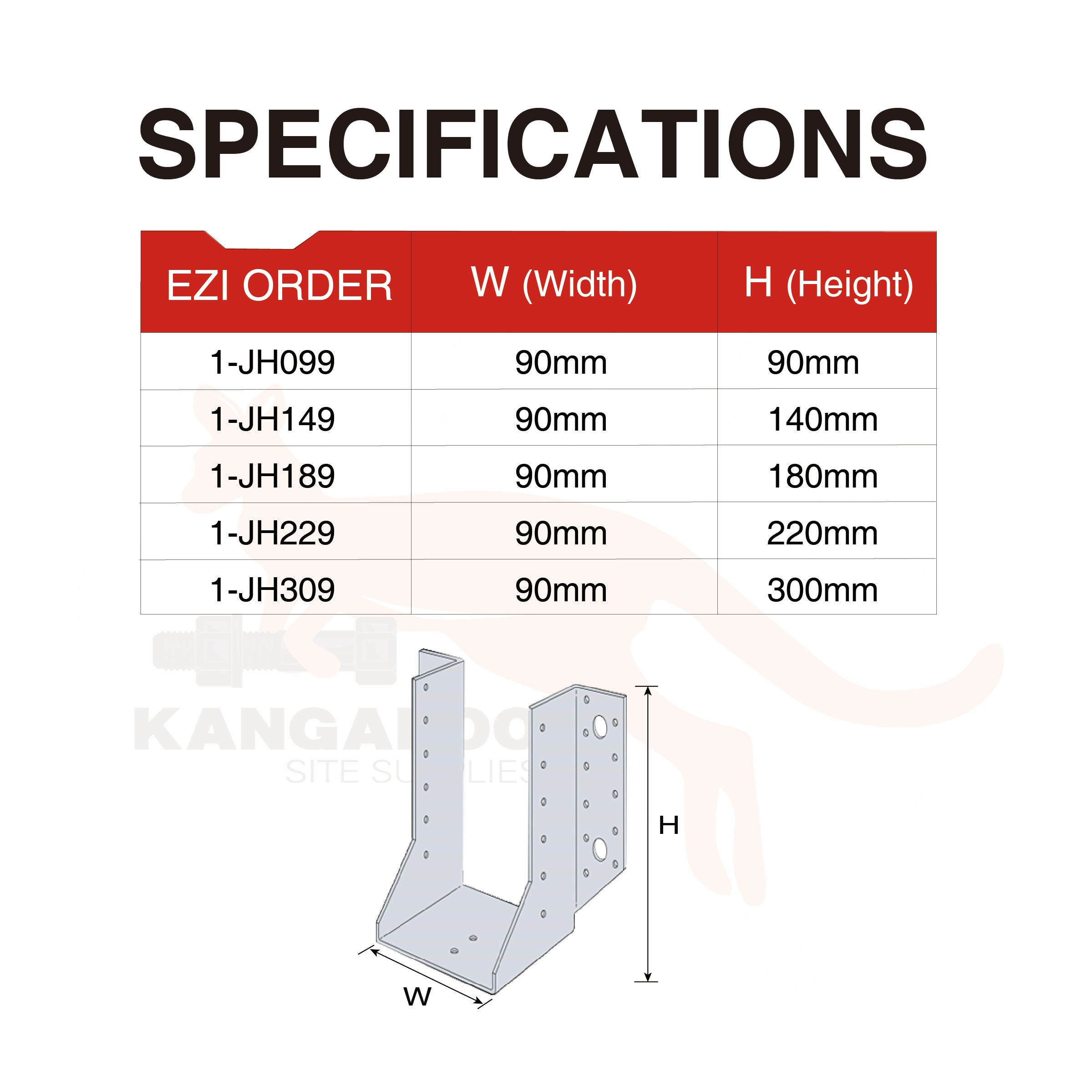

Sizes (Width ×Height):
90×90mm, light heavy duty, compact framing.
90x140mm, standard decks, flooring.
90x180mm, large‑span decks.
90x220mm, heavy flooring, pergola beams.
90x300mm, commercial projects, extra‑large spans.
Rule: Hanger height ≥ joist depth. Width fixed at 90mm.
