Applications:
Fixing timber plates, steel brackets, and structural supports to solid, uncracked concrete. Suitable for residential, commercial, and infrastructure projects – non-critical load applications only.
Features:

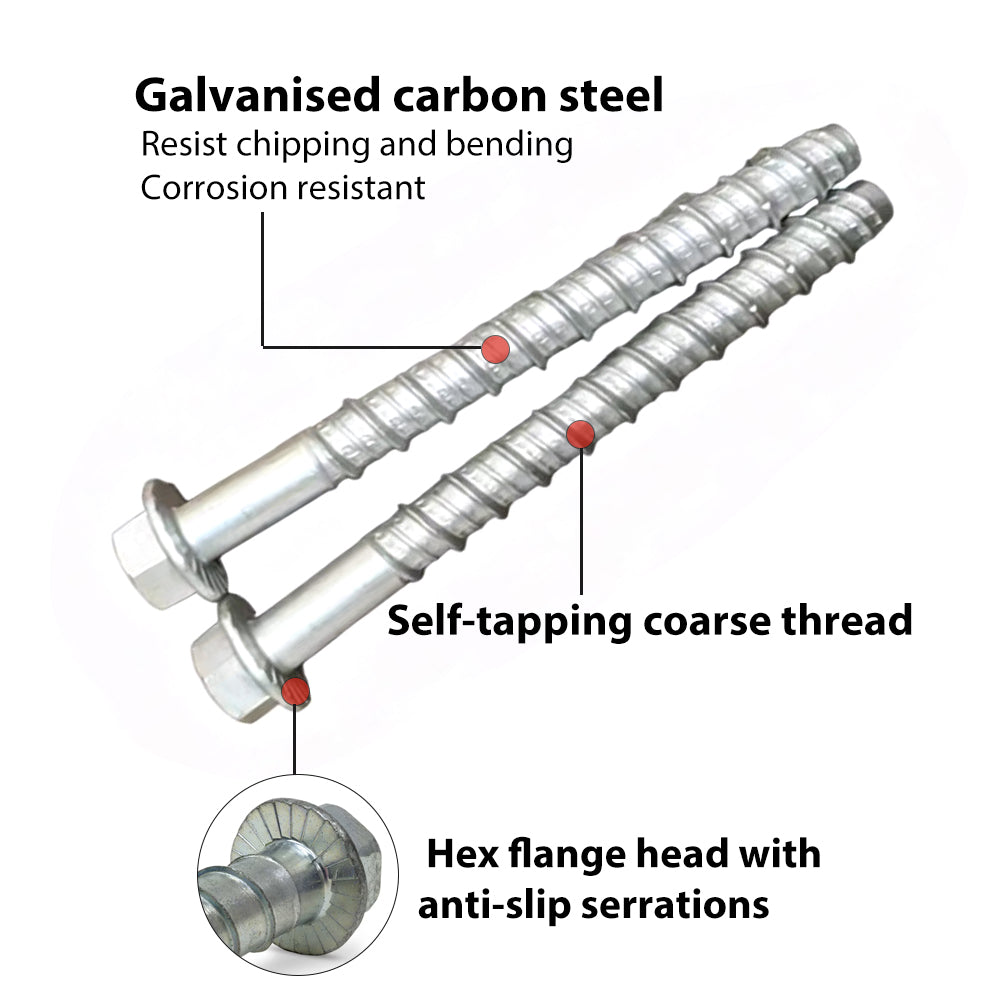

- Self-tapping coarse thread cuts directly into concrete; no expansion plug or chemical anchor required.
- Hex flange head with anti-slip serrations,19mm socket, impact driver ready; locks tight under vibration.
- Heat-treated carbon steel, hardened thread resists chipping and bending during installation.
- Galvanised finish, corrosion-resistant for indoor, outdoor, and humid environments.
- Low-torque design, installs quickly with standard impact drivers.
Size & Installation Parameters:

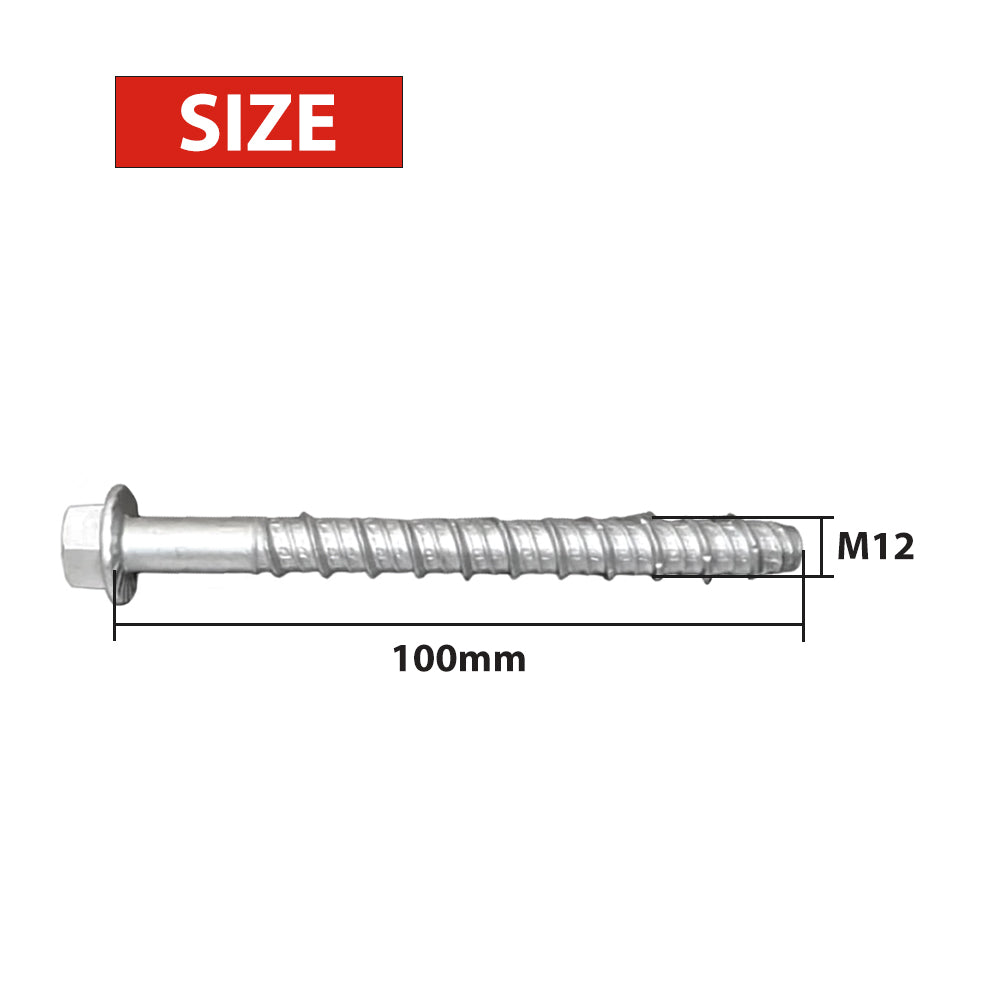

- Thread size: M12.
- Total length: 100mm.
- Socket size: 19mm.

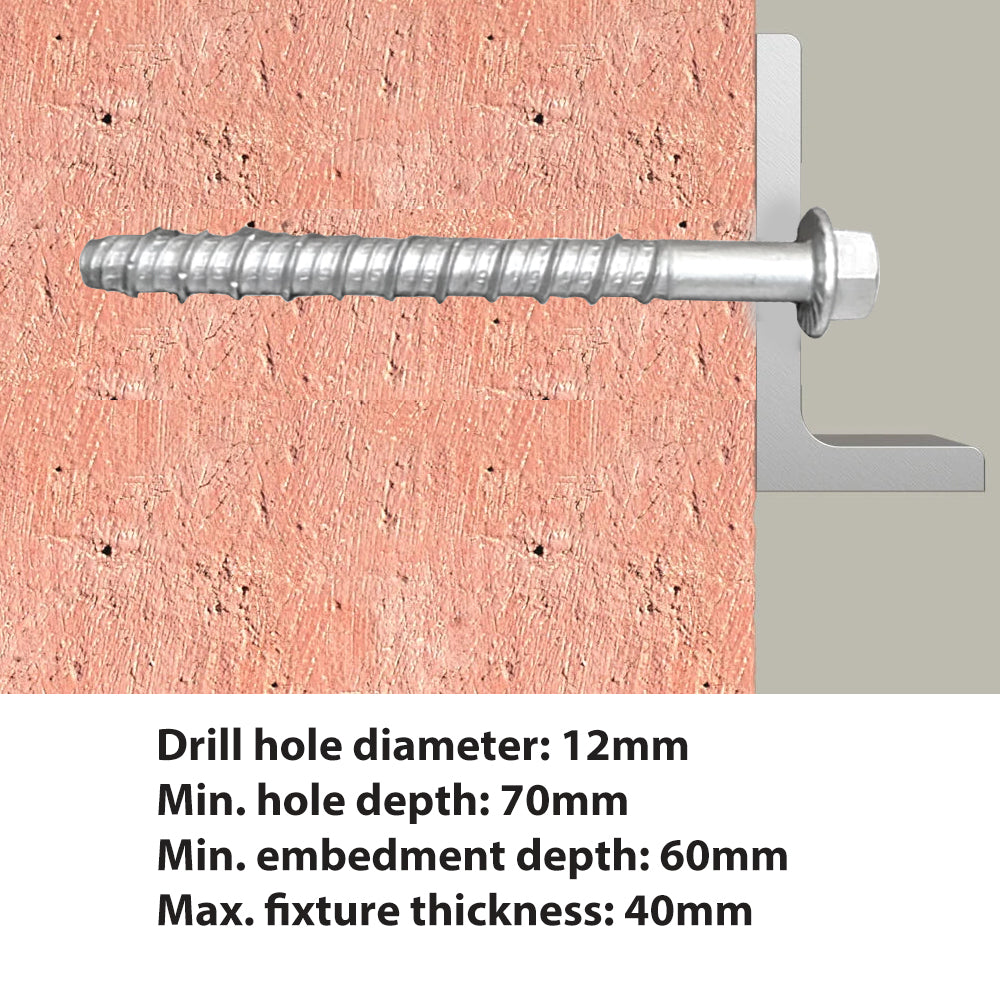

- Drill hole diameter: r 12mm.
- Min. hole depth: 70mm.
- Min. embedment depth: 60mm.
- Max. fixture thickness: 40mm.
- Max. torque: 20Nm.
- Tensile capacity: 10KN.
- Seismic capacity: 4.0KN
Installation:
1. Drill 12mm hole (min. 70mm depth); 2. Clean hole thoroughly; 3. Drive anchor with 19mm socket and impact driver ( torque to 20Nm).
