Applications:
Waterproof penetration fixing points on metal roofing and wall cladding; light-gauge steel framing and thin steel sheet-to-sheet connections; light steel envelope systems in residential and light commercial buildings. Suits inland suburbs, general coastal areas (5–10km from shore), and heavy industrial pollution.
Features:
- Carbon steel construction - high strength.

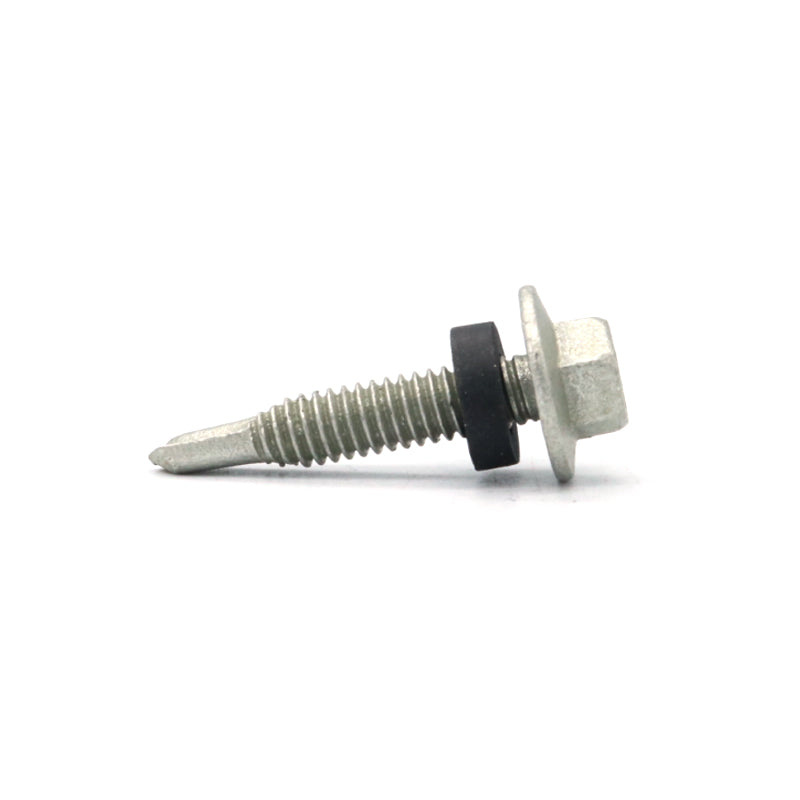

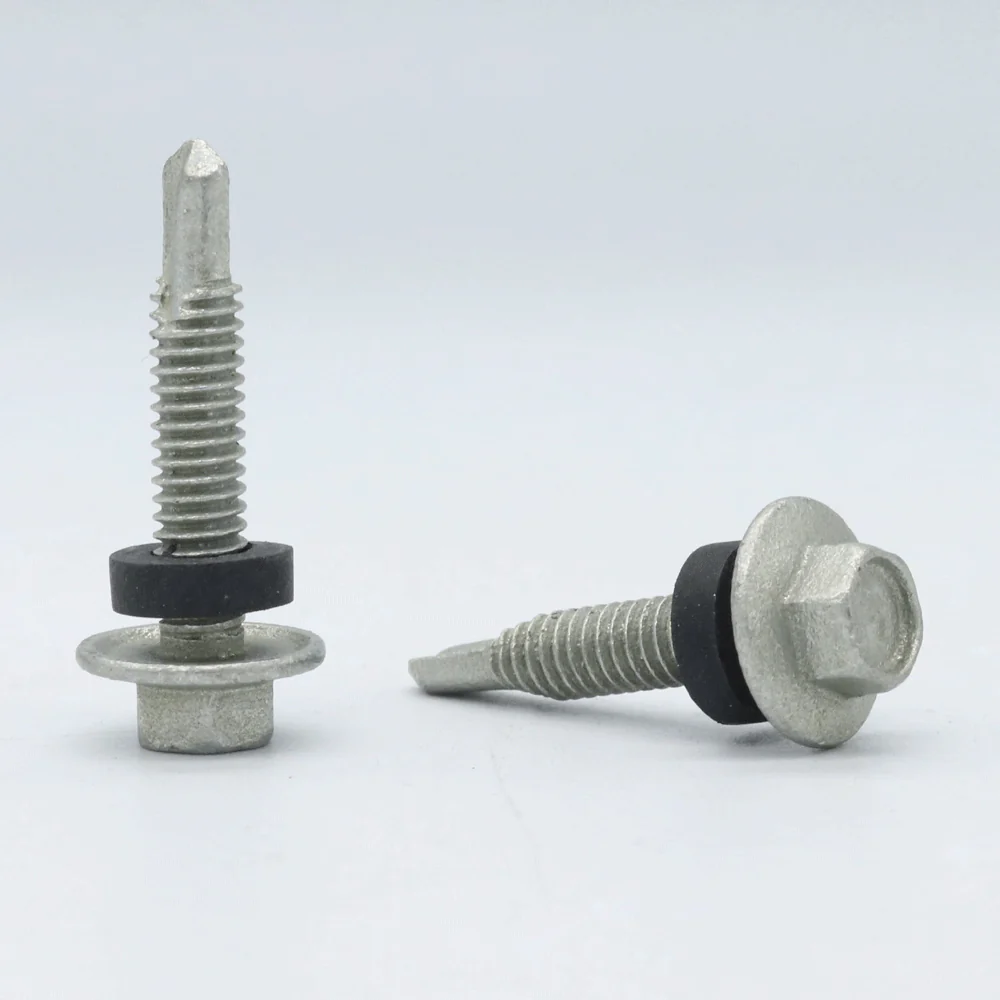

- Hex flange head with integrated rubber sealing washer - watertight seal at penetration points.
- Fine thread - high clamping force, vibration resistance, minimises stripping.
- Self-drilling point - no pre-drilling.
- C4 high-corrosion coating - outdoor and coastal salt-spray protection, NCC compliant.

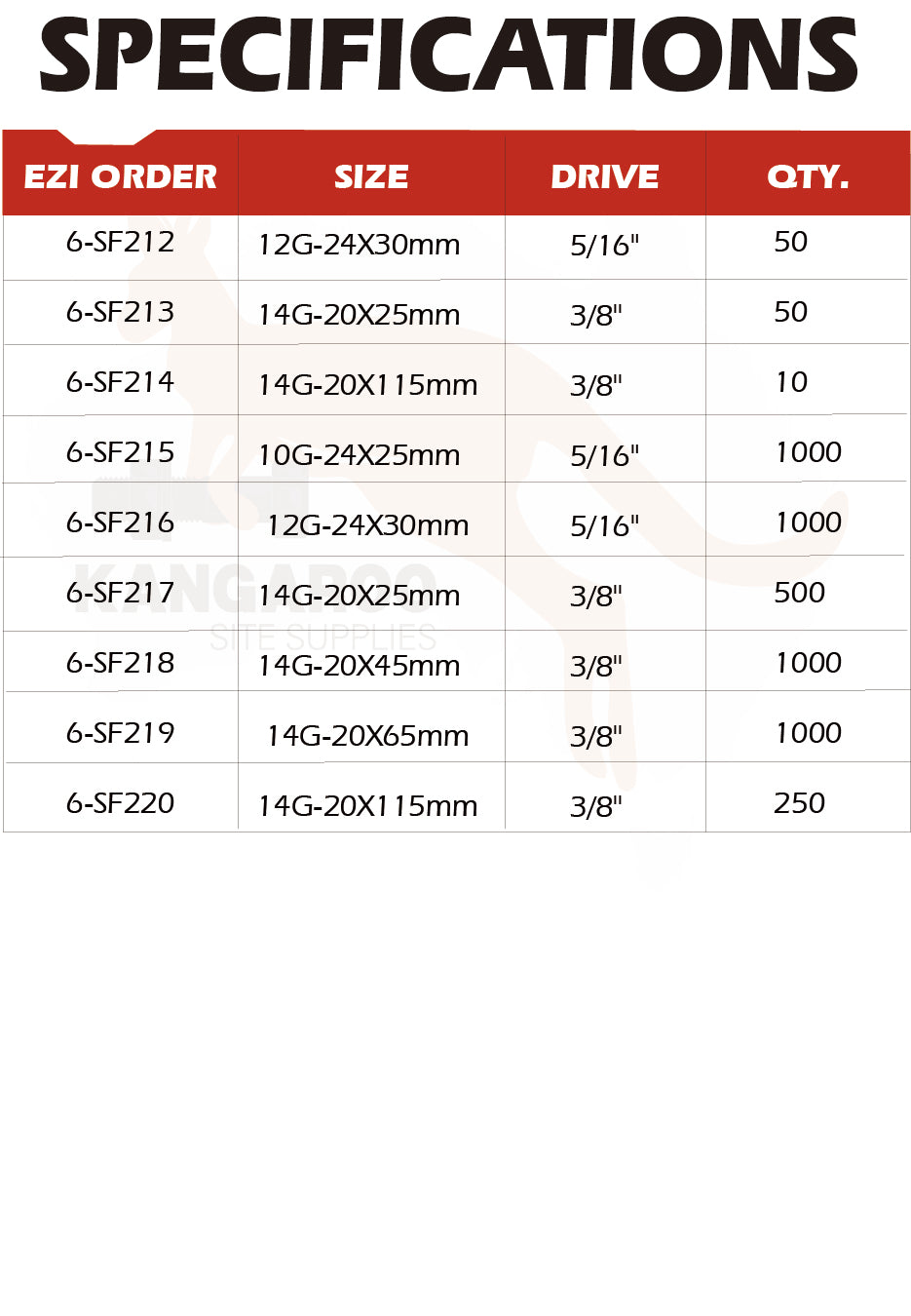

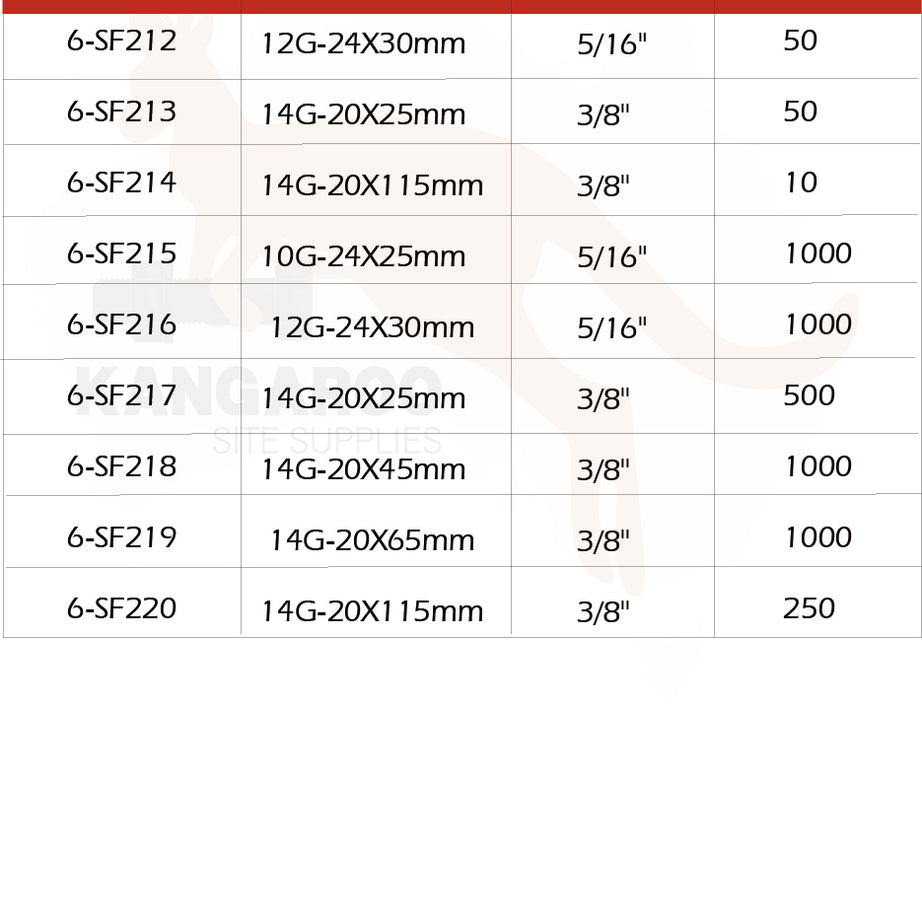

Size:
10G-24 x 25mm - thin sheet, light-duty waterproof fixing.
12G-24 x 30mm - general steel-to-steel connection.
14G-20 x 25-45mm - heavy-duty, thick sheet penetration.
14G-20 x 65-115mm - thick steel framing, extra-long penetration.
