Applications:
Manual lifting and horizontal handling of AAC wall panels (75–200mm thick) – for unloading, repositioning, laying, and stacking. Sold as a pair – both sides of the panel must be gripped simultaneously for safe handling.
Features:

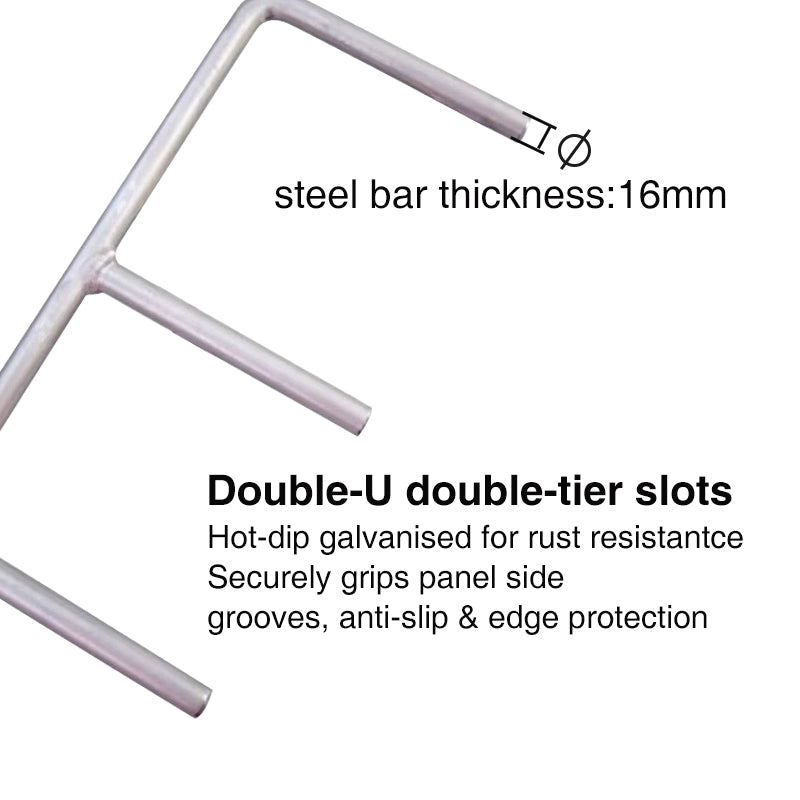

- 16mm solid round steel bar – thick, strong, resists bending.
- Double‑U double‑tier slots – grips panel side grooves securely, prevents slipping and edge damage.
- Hot‑dip galvanised – rust‑proof, durable for wet and corrosive site conditions.
- Universal fit – works with all standard AAC panels (75–200mm) by locking into the side tongue‑and‑groove joints (not by panel thickness).
- 2‑person operation – one grip per side, balanced lifting.
Sizes:
16mm bar diameter. Fits panel thicknesses 75mm, 100mm, 125mm, 150mm, 200mm.
Usage & Notes:
Do: Unloading, horizontal transfer, laying, and stacking of AAC panels.
Don't: Vertical lifting onto walls or suspended hoisting – these are manual handling aids, not lifting clamps.
Must be used in pairs – one grip per side to balance load, prevent cracking and tipping.

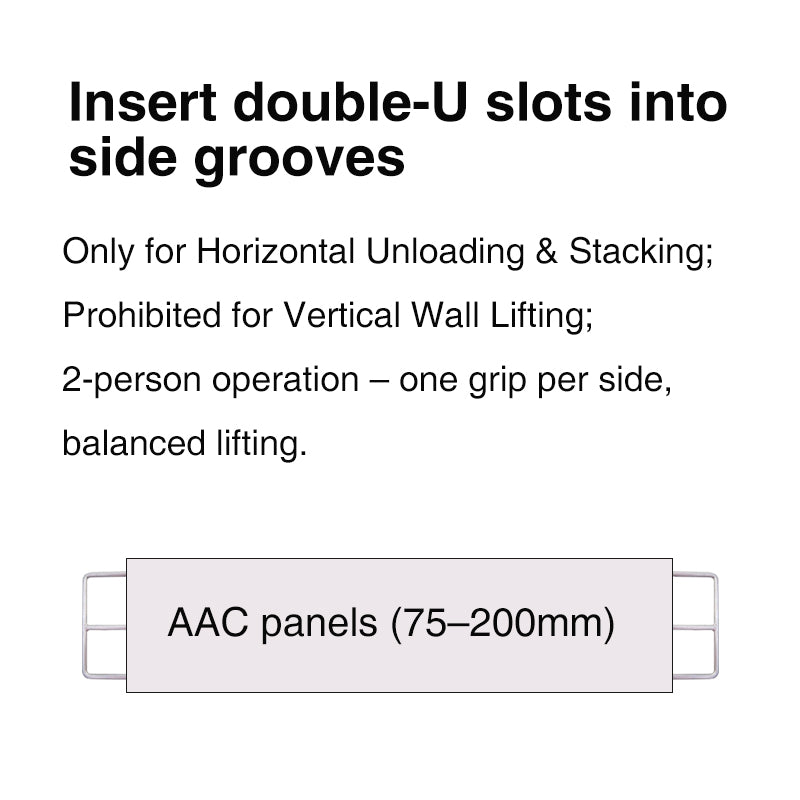

Insert double‑U slots into side grooves, lift evenly, place, then withdraw horizontally.
