Applications:
Mechanical assembly, equipment connections, structural steel, and general building fastening. Used under bolts and nuts to protect the substrate and distribute load.
Features:
- Carbon steel construction - high strength and durability.

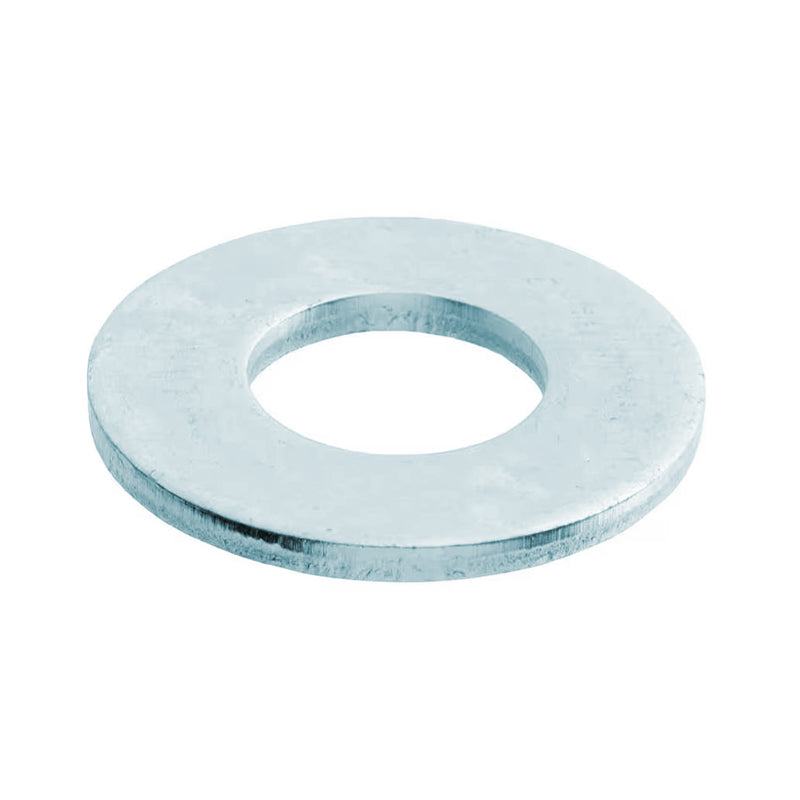

- Round flat washer design - standard shape, universally compatible with bolts and nuts.
- Increased bearing surface - distributes pressure to prevent damage or crushing to thin/soft materials.
- Zinc plated (ZP) - basic rust protection for indoor and dry environments.
- Full size range - M5 to M24 to match standard bolt sizes.
Sizes:
M5 x 10mm - small machinery and precision assembly.
M6 x 16mm - general fastening and light brackets.
M8 x 19.0mm - medium steel structures and equipment connections.
M10 x 22.5mm - general load-bearing structures.

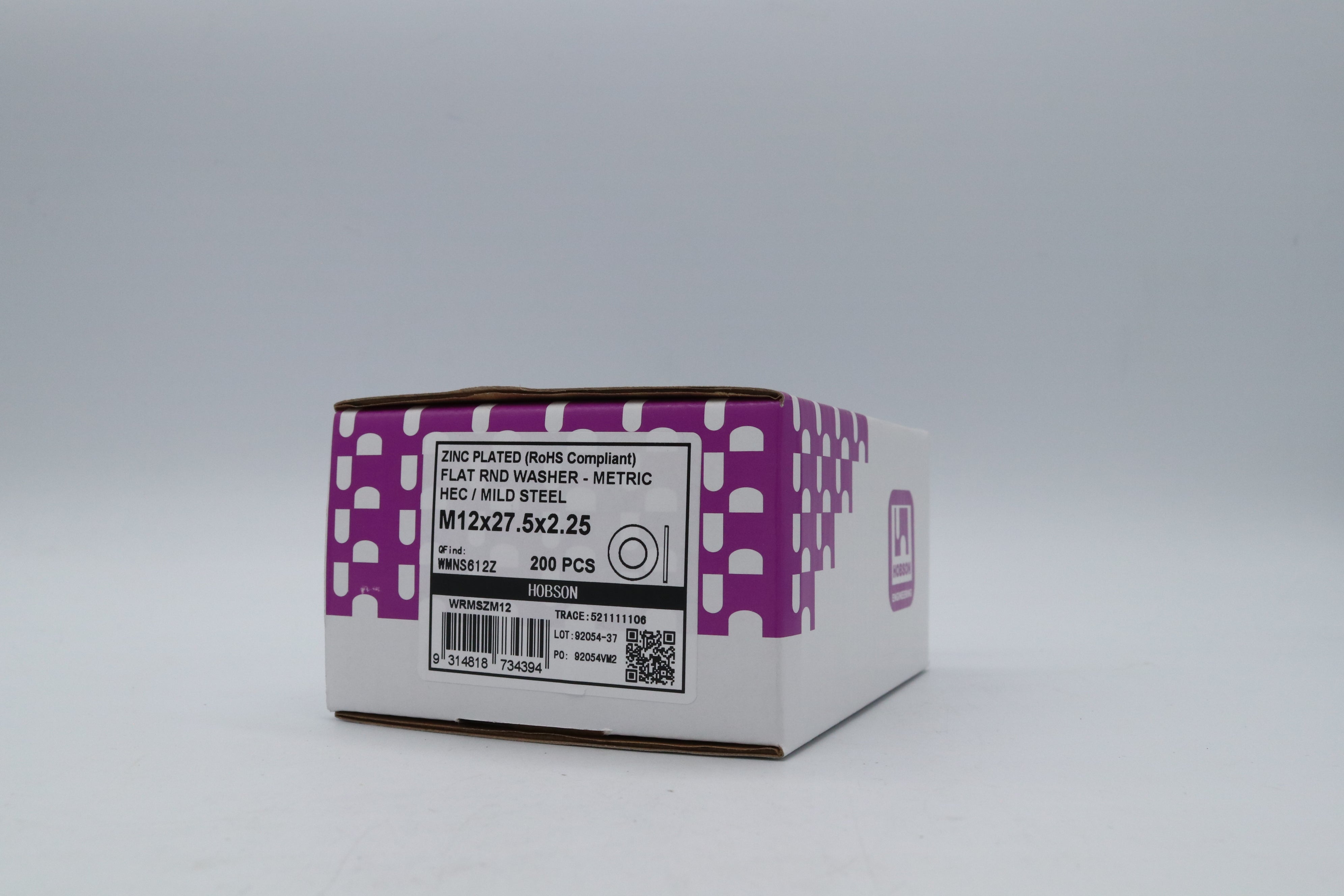

M12 x 27.5mm - heavy steel structures and guardrails.
M16 x 33.5mm - heavy-duty frames and equipment bases.
M20 x 38.0mm - large steel structures and heavy equipment.
M24 x 52.0mm - extra-heavy structures and industrial equipment.
