Applications:

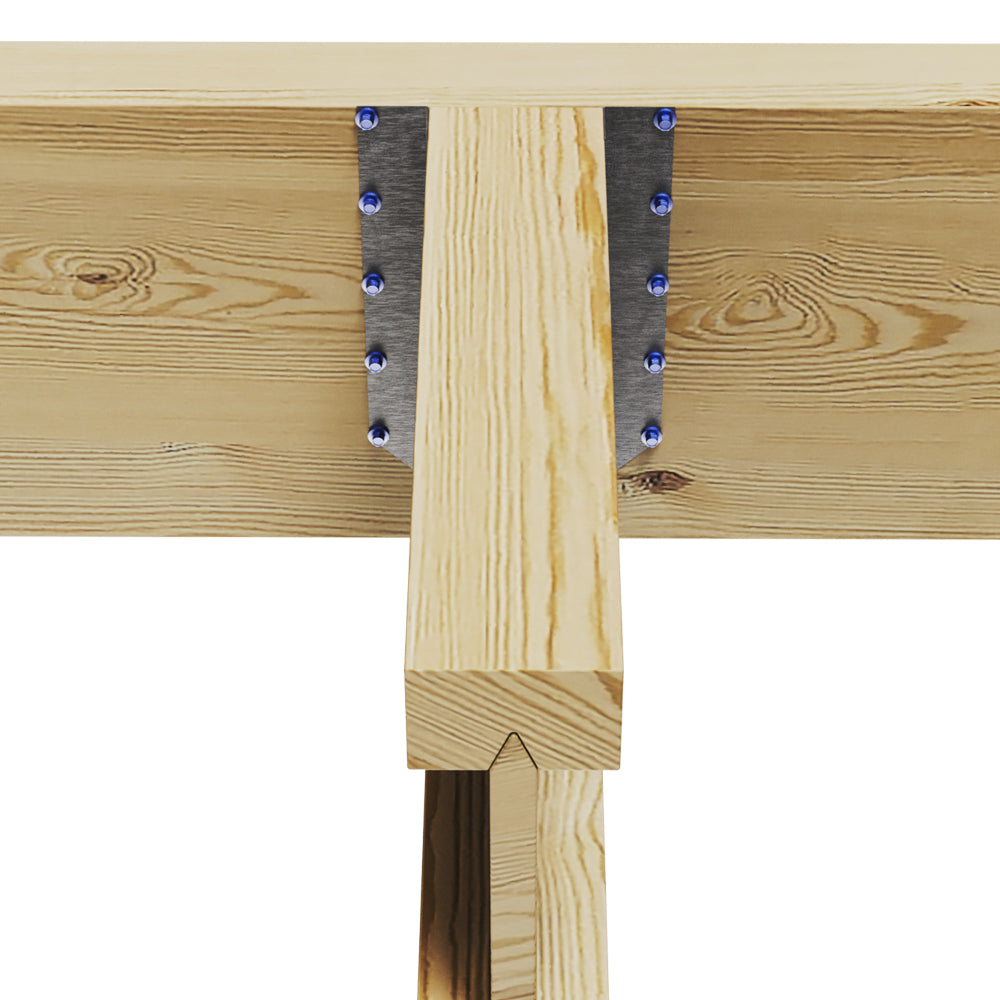

Face‑mount fixing of I‑joists to supporting beams or headers – timber flooring, subfloors, balconies, and suspended platforms in residential light‑frame construction.
Features:

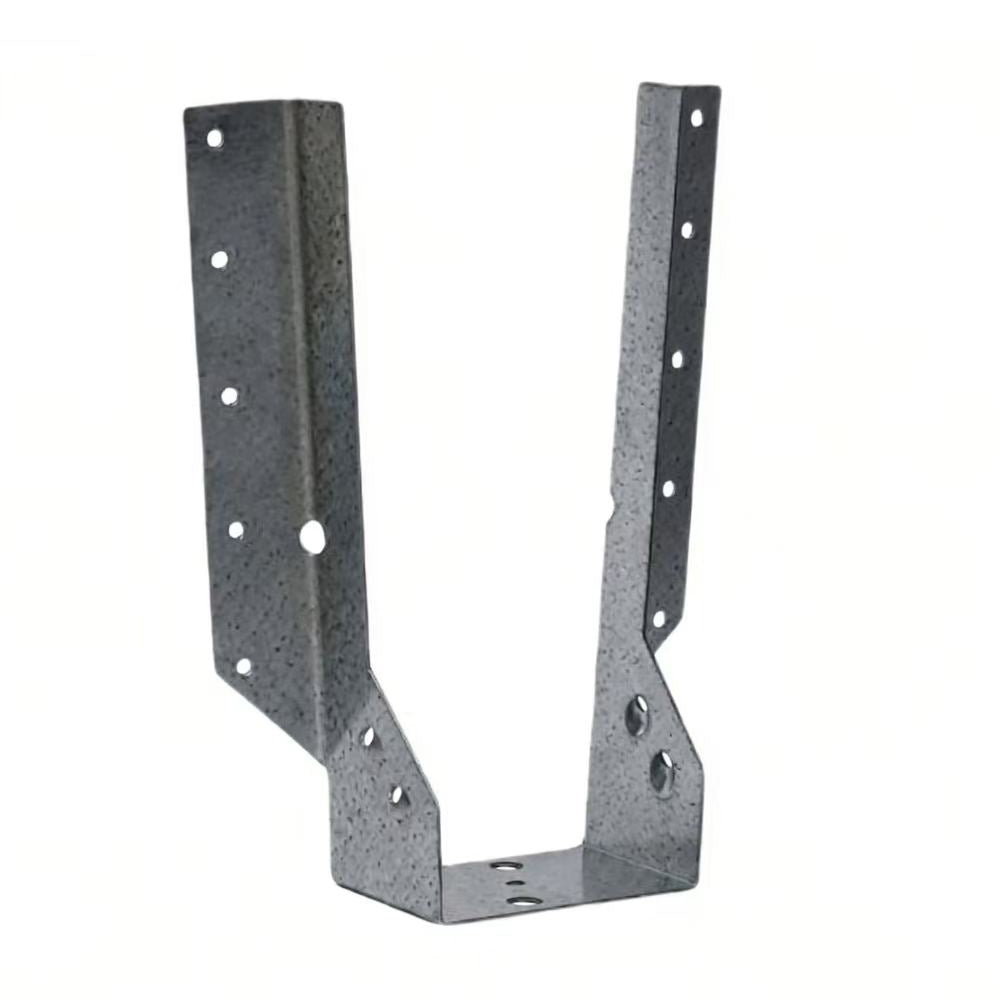

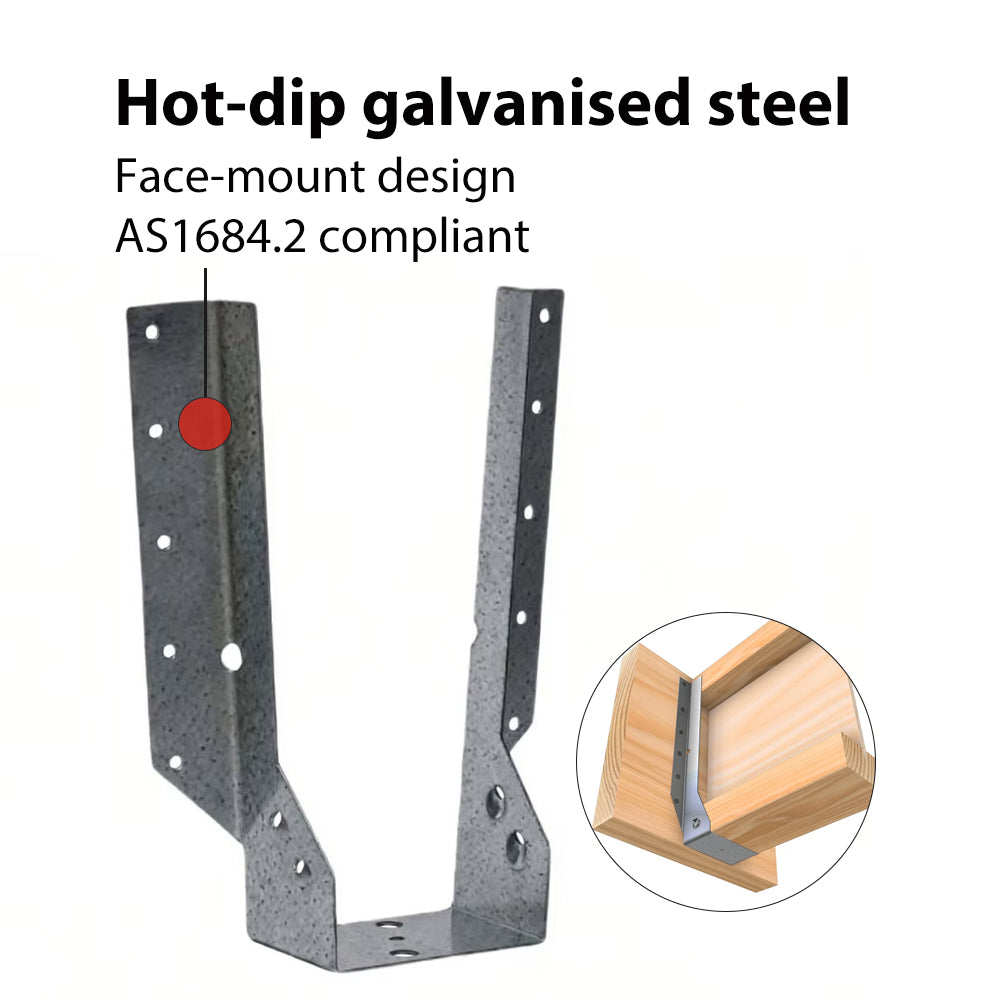

- Face‑mount design – installs directly onto I‑joist web; no cutting or notching of flanges.
- Full size range – covers joist depths 190–300mm and web thicknesses 45–90mm.
- G300 hot‑dip galvanised steel – corrosion resistant for indoor and subfloor use.
- One‑piece pressed steel – no weld joints; uniform shear and tensile strength.
- Pre‑punched nail/bolt holes – compliant with NCC2022 fixing patterns.
- AS1684.2 compliant – meets Australian Standard for timber framing.

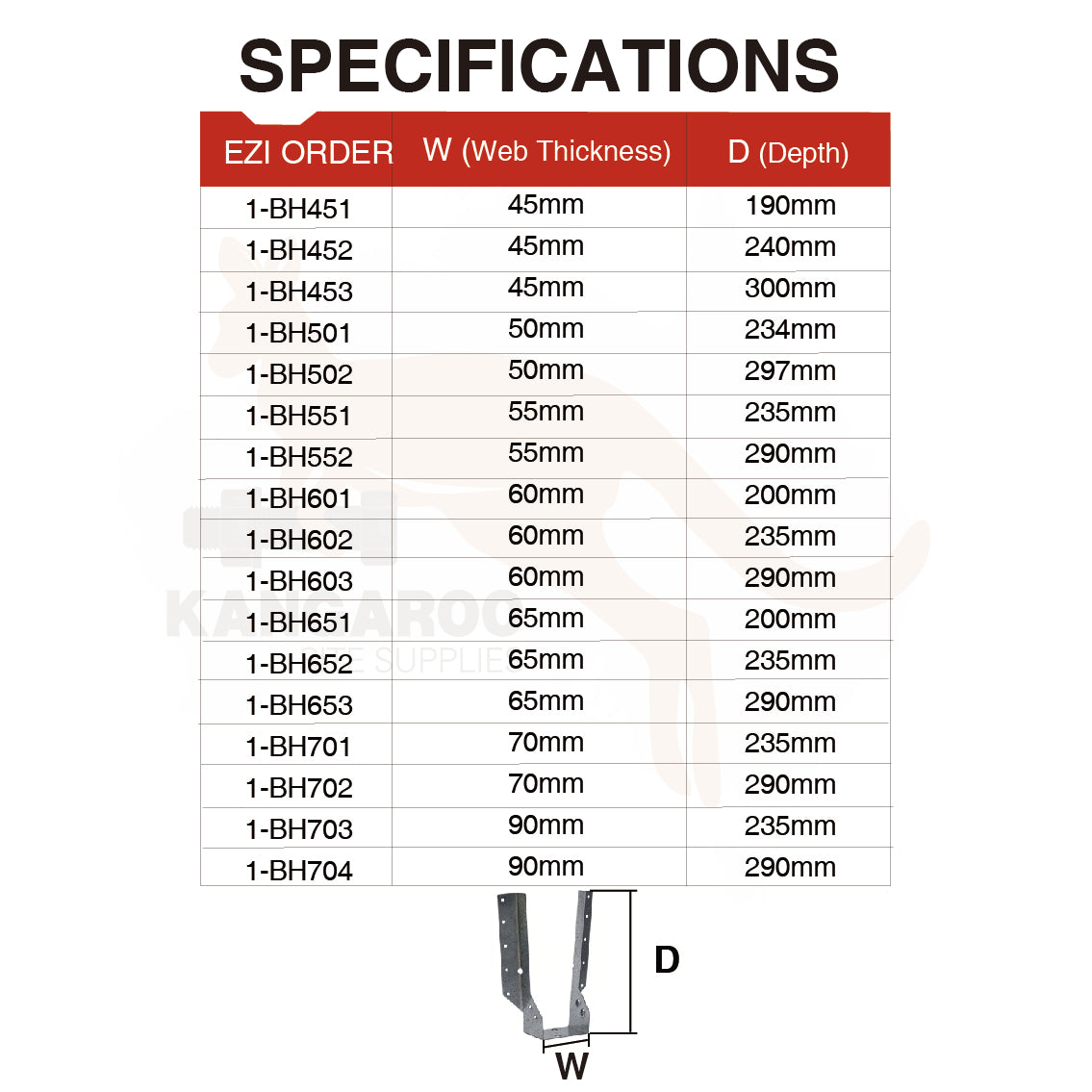

Sizes – Choose by Joist Depth × Web Thickness:
190–240mm depth × 45mm web – standard residential joists, light to mid‑span floors.
240–300mm depth × 45–65mm web – larger spans, heavier loads, commercial flooring.
290–300mm depth × 65–90mm web – heavy‑duty applications, large spans, high load areas.
Full range: joist depths 190–300mm, web thicknesses 45–90mm. Most popular: 190×45mm, 240×45mm, and 290×65mm.
