Applications:
Top‑mount fixing of I‑joists to supporting beams or headers – timber flooring, subfloors, balconies, and suspended platforms in residential light‑frame construction.
Features:

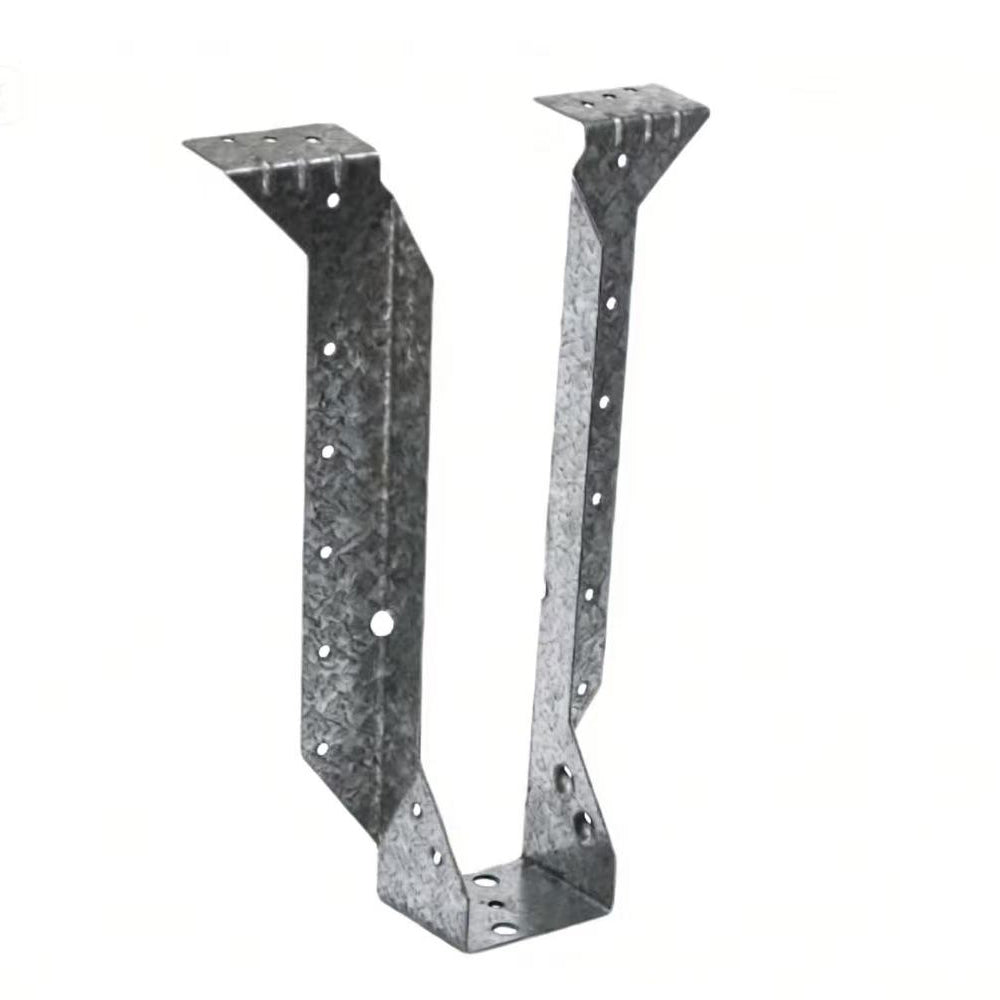

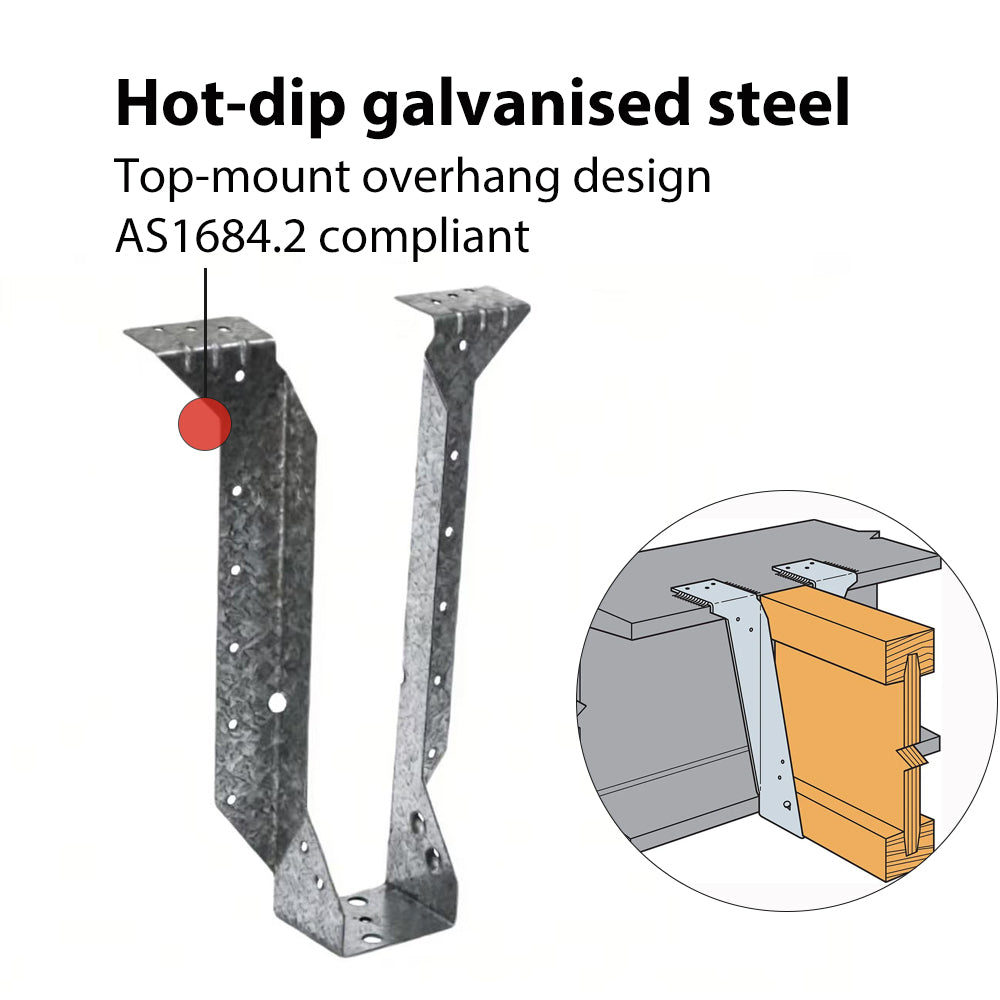

- Top‑mount overhang design – hooks over support beam; pre‑install hangers before placing joists – faster than face‑mount.
- Full wrap U‑channel – wraps both sides of the I‑joist web; resists twisting and lateral movement.
- 1.2mm G300 Z275 hot‑dip galvanised steel – high strength, corrosion-resistant for subfloor use.
- Anti‑squeak fixing holes at base – locks the bottom flange to eliminate floor noise.
- Fewer fasteners required – higher vertical load capacity than face‑mount hangers.
- AS1684.2 compliant – meets the Australian Standard for timber framing.

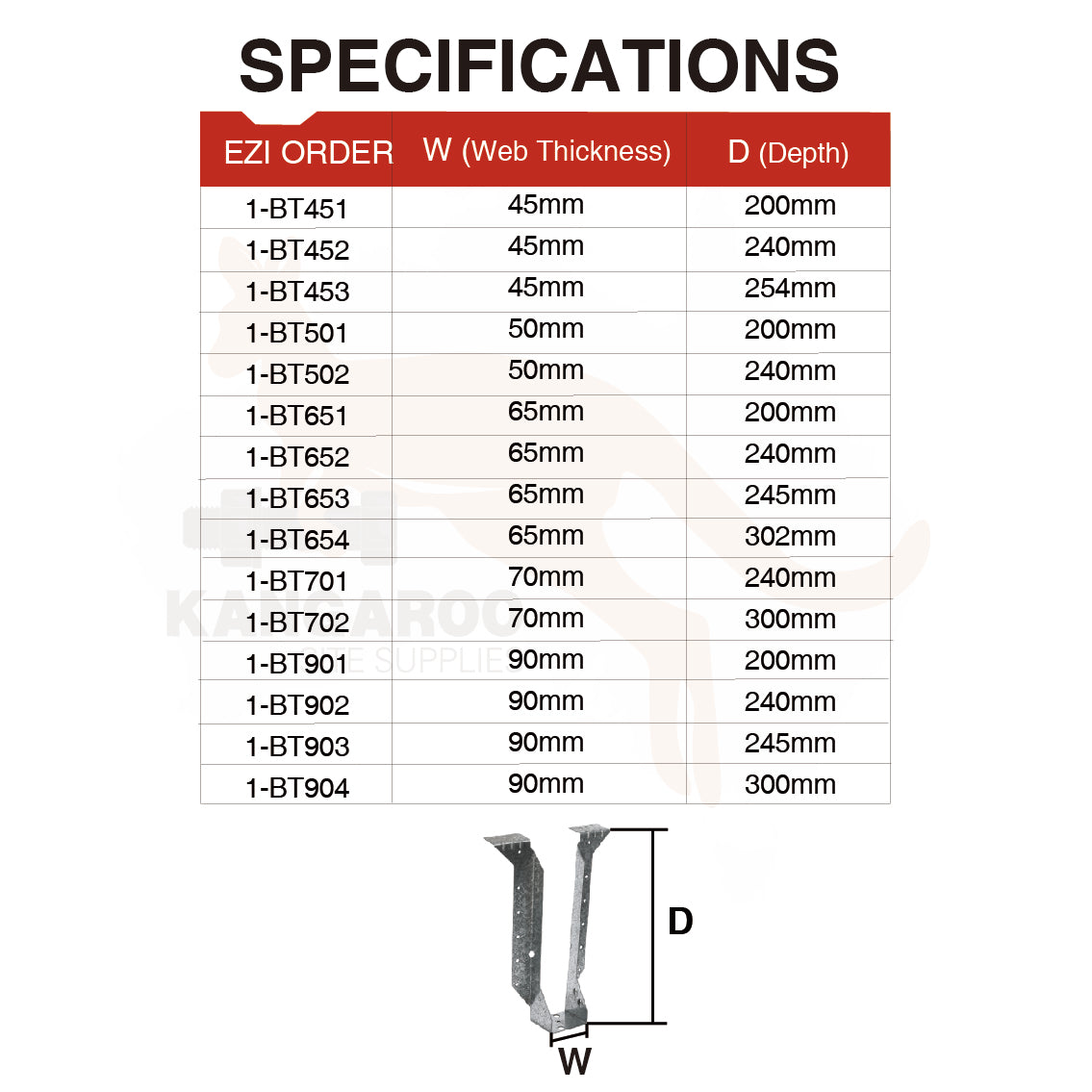

Sizes – Choose by Joist Depth × Web Thickness:
200–245mm depth × 45–50mm web – standard residential floors, light loads.
200–302mm depth × 65–70mm web – mid‑span floors, heavier loads.
200–300mm depth × 90mm web – heavy‑duty floors, large spans, commercial.
Full range covers joist depths from 200mm to 302mm and web thicknesses from 45mm to 90mm.
