Internal Wall Bracket 45mm x 110mm x 35mm - Long Slot

Appilcations:

Securing non-load-bearing internal wall top plates to roof trusses or rafters. Provides lateral restraint for walls where the unrestrained top plate length exceeds 1.8 metres.

Features:

• G300 Z275 hot-dip galvanised steel -corrosion resistant for long-term durability.
• L‑shape one‑piece press‑formed steel - no weld joints; uniform strength.

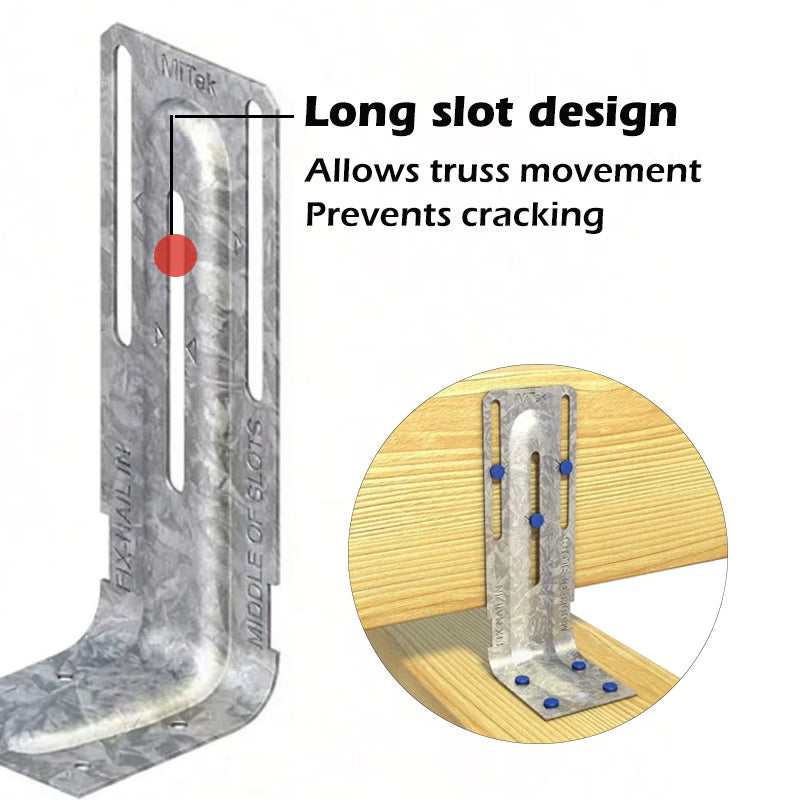

• Long slot design - allows truss movement while holding the wall in position; prevents cracking.
• 1.5mm thick - heavy-duty gauge for structural restraint.

Size:

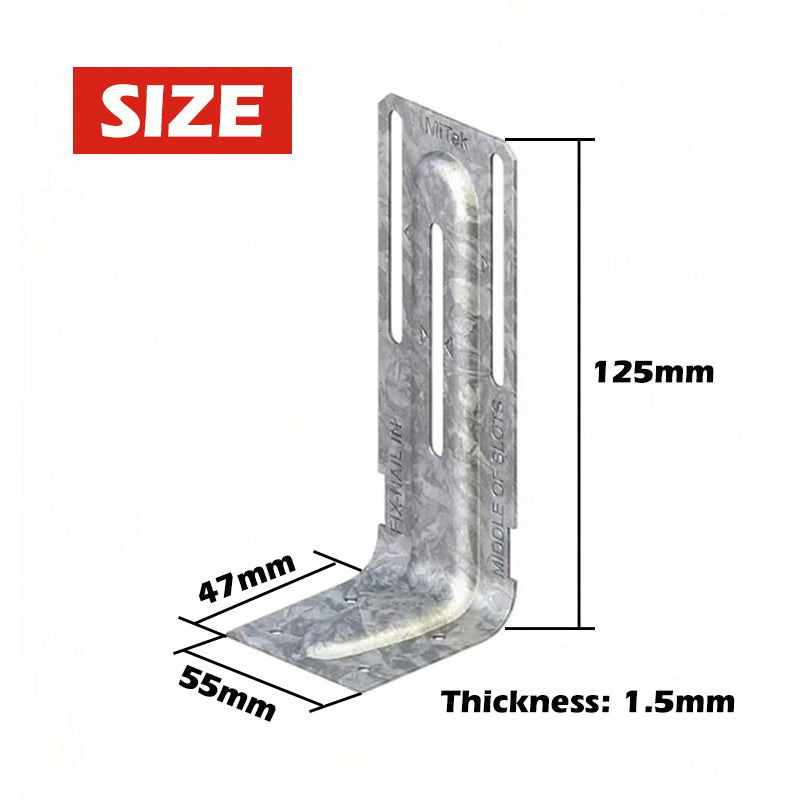

125mm long × 55mm wide × 47mm leg depth × 1.5mm thick – the 55mm leg sits flush on the wall plate, while the 47mm leg provides secure fixing to the truss, with the long slot allowing vertical movement.
