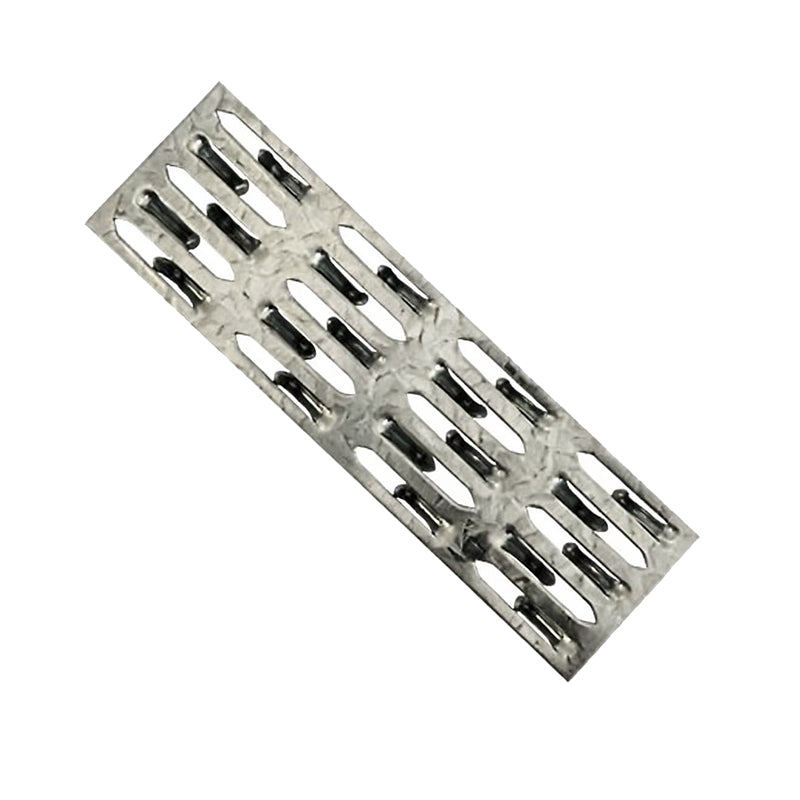

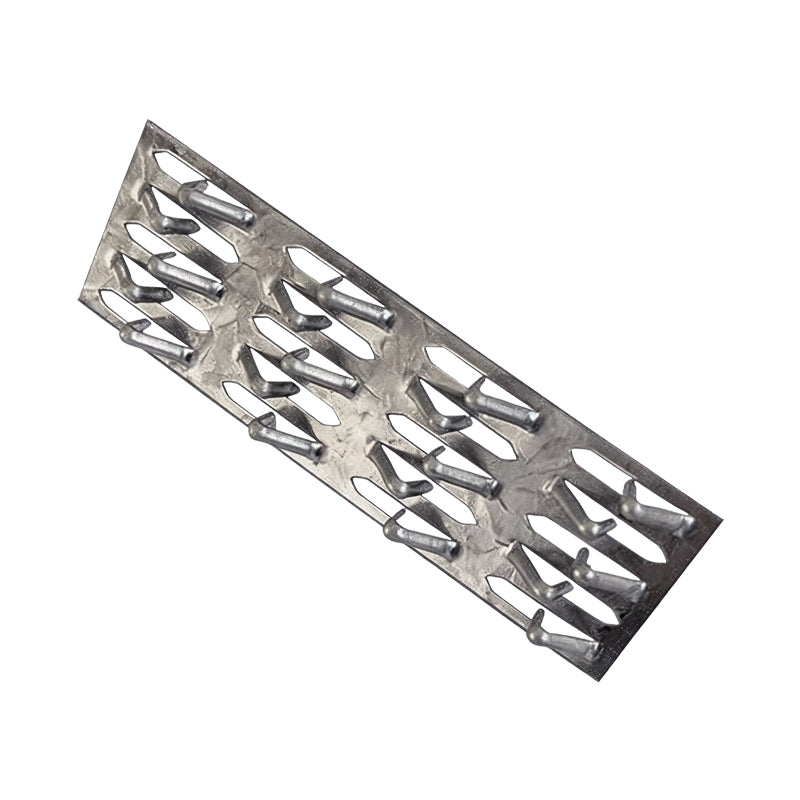

Knuckle Nailplate Galvanised, Multiple Sizes

Applications:

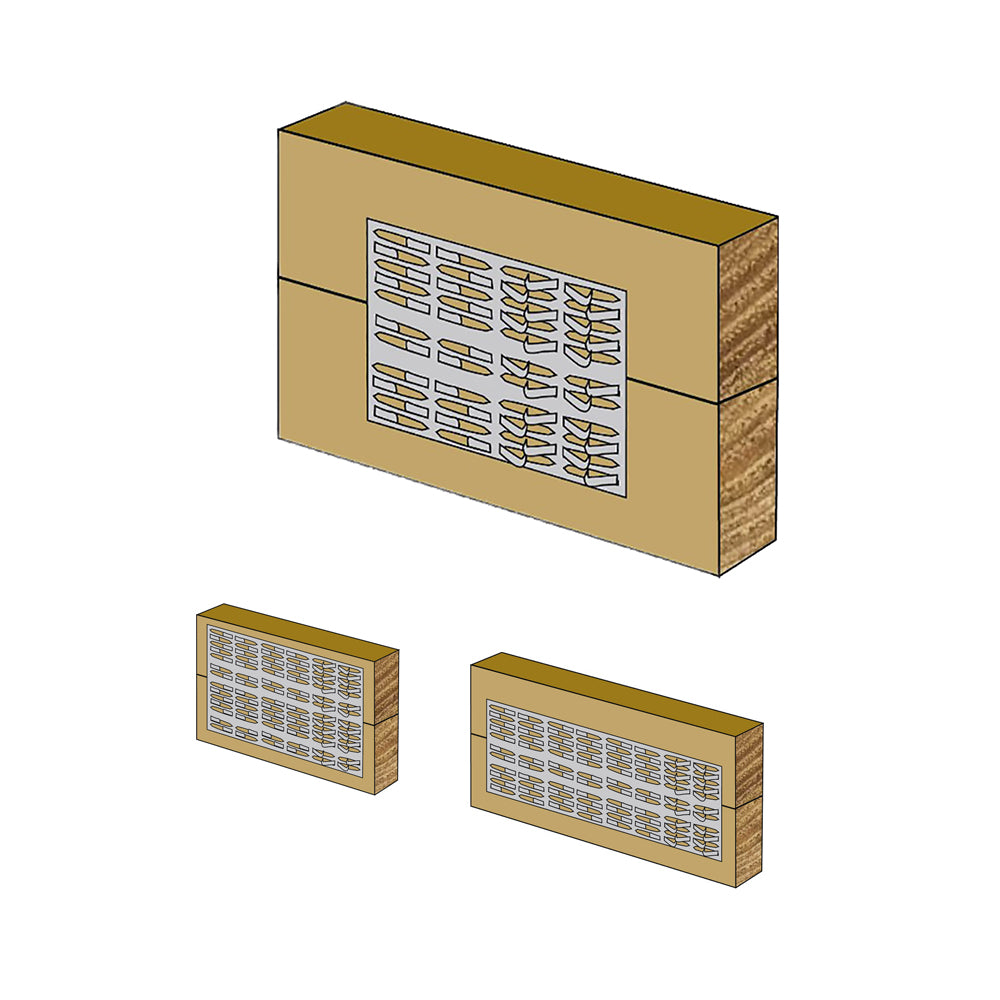

Splicing and reinforcing timber members in structural and non‑structural framing – timber frames, roof trusses, beams, joists, outdoor structures, and repairs.

Features:

• Integral knuckle nails – formed from the same steel plate; no separate nails or screws required.

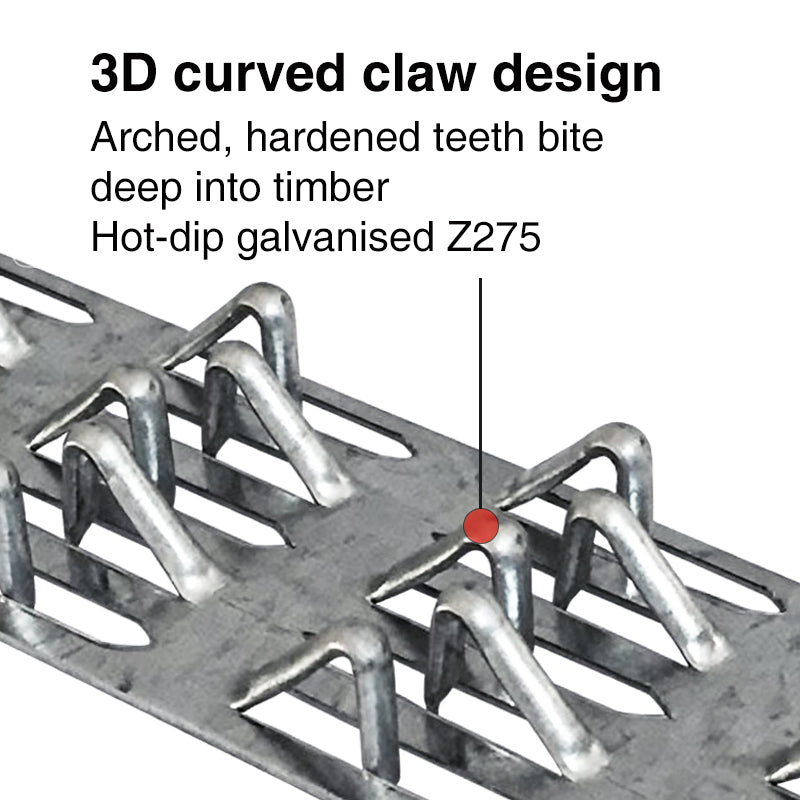

• 3D curved claw design – arched, hardened teeth bite deep into timber; superior grip that won't loosen over time.
• Tap‑in installation – hammer or press into place; teeth penetrate timber with a few blows.
• Hot‑dip galvanised Z275 – corrosion resistant for indoor and outdoor use.
• Flat plate with recessed slots – lightweight yet strong; sits flush against timber.
• G300 high‑strength steel – 1.0mm thick, designed for structural loads.

Sizes (Width × Length):

• 38mm wide – 63, 127, 190, 254, 317, 380mm (light framing).
• 67mm wide – 127, 190, 254mm (medium framing).
• 76mm wide – 63, 127, 190, 254, 317, 380mm (standard framing).
• 134mm wide – 63, 127, 190, 254, 317, 380mm (heavy duty).
